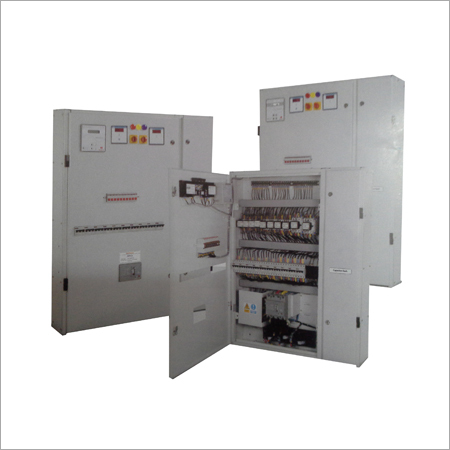

Distribution Board

Distribution Board
Distribution Board
Product Code : DB-11
Brand Name : BALAJI POWER CONTROL
Product Description

Values

We are one of the leading manufacturers, traders and suppliers of a qualitative range of Distribution Board. This is designed as per the latest technological advancements by our skilled technocrats using the finest grade raw materials in compliance with the international standards. Moreover, Distribution Board is highly appreciated among clients for its features like reliable performance, sturdy corrosion and durability. It is also stringently tested on various parameters in order to deliver a flawless range at the clients’ end.





Salient Features

  • Correction to Unit Power Factor
  • Modular design which allows easy handling by the user
  • Designed to minimize installation time & cost
  • Advanced Microprocessor relay with communication capabilities
  • The Incomer MCCB provided has 35KA fault interrupting capability
  • Manual capacitor switching capability
  • Indicating light for capacitor stage display
  • Industrial Duty, safety disconnects Metallized dielectric capacitors, less than 0.2 watts per KVAr losses.

Technical Specifications

Standards

IEC-61921/IS 8623

Power range

25kVAr to 150 kVAr

Rated Voltage

415V AC+10%

Rated Frequency

50 Hz

Short Circuit Rating

Up to 35kA

Over Voltage

105 % Continuous

110 % for 8 Hours Daily

120 % For 5 Minutes

130 % For 1 Minute

Over current

200% The Rated current continuously

Duty

Continuous

Power supply

Three phase, four line

Relay voltage input signal

Tapped internally

Relay current input signal

-/5A, from CT on line

Ambient temperature

5oC to +40oC

Attitude

1000 above msl

The Enclosure

The basic structure is made of 1.6mm sheet steel & the mounting plate of components is of 2mm
The internal components are accessible on opening the front door
The protection rating is IP40

Installation

Indoor, wall mounted, in a well ventilated non-dusty environment, cable entry from bottom

Incomer

A three pole MCCB, Using FRLS cable, of adequate section

Internal Wiring

Cylindrical, dry type three phase units

Capacitors

MPP-SH, Normal duty cylindrical with over pressure Disconnector & Discharge Resistor

Contactors

Three pole capacitor duty contractors of adequate ratings for respective steps

Relay

A microprocessor based relay with 6,8 & 12 output contacts for switching contactors

The controller protection

Having PF indication, built in time delays, and alarm indication for CT reversal apart from the protections associated with the capacitor itself, there is a thermostat which disconnects the entire panel in the event of excessive temperature rise in the enclosure.
As a safety measure, an inter lock is provided so that when the front door is opened, the entire panel will trip.
